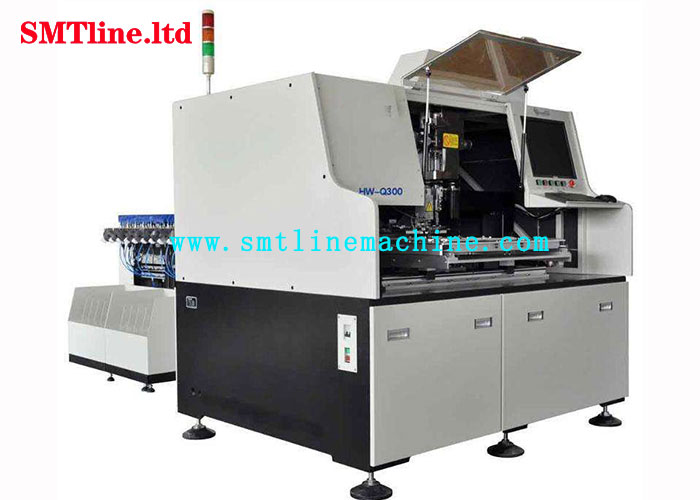

High Speed Automatic Insertion Machine , Dip Equipment Led Insertion Machine

Brand Name : cnsmt

Model Number : Auto Insertion Machine

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100pcs/day

Delivery Time : 5-7 work days

Packaging Details : box

Brand : cnsmt

MODEL : Auto Insertion Machine

Weight : 1130KG

Lead Time : IN Stork

Packing : BOX

CONdition : Working

P/N : cnsmt-ai035

PAYMENT TERM : T/T, Paypal, Westernunion are all allowed

Contact Now

AVK3 RH2 Auto Insertion Machine HIGH Speed dip equipment stable and high quality


Quick Detail

Theoretical velocity 7000-9000 points / hours
Insertion loss rate Less than 500PPM
Insertion direction 0-360 degrees (increments of 1 degrees)
Substrate size Minimum 80mm * 100mm, maximum 480mm x 3000mm
Substrate thickness 1-2.5mm
Plug-in component object 6*6-5H right angle light touch switch (4.5*6.5mm)
Number of plug-in axes The 2-3
Machine size (long * width * high) 2310mm/1400 x 1925mm
Machine weight 1790kg (1 working heads)
Use power 220V, AC (Dan Xiang); 50/60HZ, 1.0KVA, 967W (energy saving)
System protection Uninterruptible power supply (UPS) configuration
Use power 960W
Use of air pressure 0.4-0.6Mpa
Gas consumption 0.3 cubic / minute (dry gas)
Use of ambient temperature 5-26 degrees
Machine noise 55 decibels
Hole position correction method Machine vision system, multipoint MARK visual correction
driving system AC servo, AC motor
Data input mode USB interface input (EXCEL document format)
Control system Chinese operation interface (WINDOWS system control platform) LCD monitor
Worktable operation mode From left to right, from right to left
Transmission mode of PCB Manual / automatic optional


Feature

Product Name: smt Auto Insertion Machine
Used for: smt assembly full line
Warranty: 1 Year
Shipment by air
Delivery Time: 1-2Days
Our Main Market Whole of the world


Packaging details:foam and carton
Delivery time:Within 1~3 working days
Shipment
1. We ship to world wide
2. Most orders ship within 1~7days after payment
3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
4.100%T/T before shipment, after we shipped the goods, we will email you the shipping information
5.WE sell and buy used equipment long-term
High Speed Automatic Insertion Machine , Dip Equipment Led Insertion Machine

This machine is mainly used in large devices, special-shaped devices and plug-ins in existing market plug-ins.
This machine is composed of feeding structure, plug-in robot, foot bending, feeding plate mechanism and controller.
*: each motion mechanism adopts a high precision servo mechanism, and camera induction is used to ensure the stability and accuracy of the machine.
Man-machine interface control device: to operate the touch screen through the program written in PLC to start and stop the machine's processing sequence, and to set and modify the processing parameters.
